Hydraulic Series

WRS Dosing Pumps

WRS Draulico H Series Hydraulic Diaphragm Pump — Engineered for maximum durability and precision, offering superior chemical resistance and full customization for the toughest dosing challenges.

Introduction

What We Do

Precision Dosing. Maximum Safety. Continuous Reliability.

Draulico H

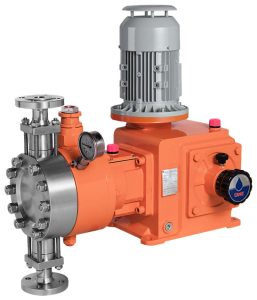

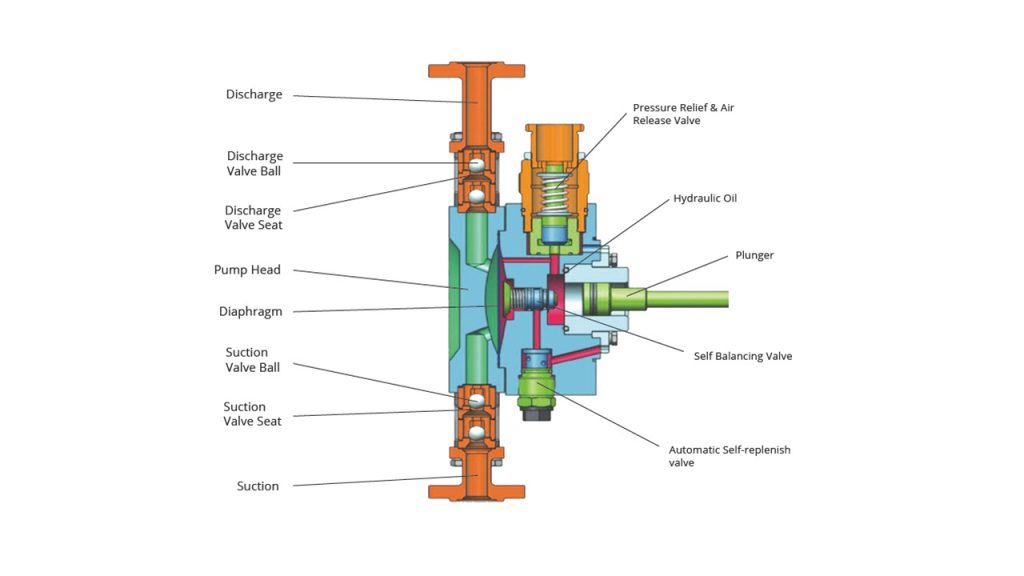

Draulico H-Series Hydraulic Diaphragm Metering Pumps — Engineered for precise dosing and solution mixing in the most demanding operating conditions. Utilizing a piston-driven hydraulic diaphragm system, the pump ensures smooth, continuous, and highly accurate fluid delivery. Its advanced three-valve hydraulic design enhances operational stability while providing exceptional safety and reliability. Built to meet the most stringent industrial standards, the Draulico H-Series is ideal for critical applications across chemical processing, petrochemical industries, and industrial dosing systems where precision and durability are essential. Built with high-precision components, these pumps deliver optimal efficiency, consistent performance, and easy maintenance. Designed with safety in mind, every unit is supported by a comprehensive quality management system and complies with ISO9001, CE, and API675 standards. With versatile process configurations to suit diverse applications, WRS continues to drive innovation while ensuring customer satisfaction. Backed by a strong global presence, the H-Series offers dependable support, with readily available spare parts and services worldwide.

Catalogue

HYDRAULIC SERIES

Configuration

What We Design

Heavy-Duty Systems. Stable Operation. Industrial Performance.

Flowrate and Pressure

Few variants of pump body with it designed flowrate and back pressure. HS : 1 to 220LPH at 10-400 bar. HM: 4 - 800LPH, 5 - 450bar, HL : 12 - 1600LPH, 6 - 450bar, HD : 30 - 3500LPH, 6 - 500bar.

Pump Head Materials

Designed for maximum chemical compatibility and durability, a comprehensive range of pump head materials is offered, from stainless steel grades to high-performance alloys and engineered plastics.

Motor Variants

A full range of motor configurations is available, including general-purpose, variable speed (VFD), explosion-proof, and explosion-proof variable speed solutions for demanding applications.

Connection Variants

Engineered for seamless integration, the pump offers versatile connection options—including weld-end, flanged, threaded, and fully customized configurations to meet project-specific standards.

Control Variants

Delivering ultimate flexibility, the pump offers both manual and digital flow control, enhanced by servo-driven stroke precision and variable speed motor technology.

Multi Head Design

Engineered for operational flexibility, the system supports both centralized drive (one motor powering up to three pump heads) and independent drive (one motor per pump head) configurations.

Cooling or Heating Head

Enhanced process control with optional pump head heating or cooling systems for demanding temperature-sensitive applications.

Digital Lite Version

Intuitive backlit LCD interface featuring soft-touch controls, real-time flow monitoring (LPH), and resettable total flow tracking for enhanced operational visibility.

Digital Plus Version

Advanced touchscreen HMI interface with secure password protection, delivering full operational visibility including flow rate (LPH), totalized flow, pressure, level monitoring, pump status, and intelligent warning alerts.
